Product Name:

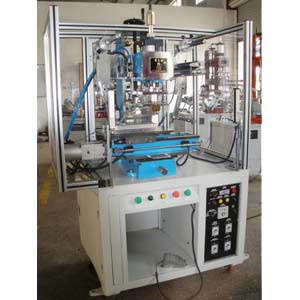

Air Press Hot Stamping Machine In Vertical Motion Type-Reinforced Mode
AT-4DN-SLM
Feature:
1.This machine is special designed to print on the seal by continually printing.
2.Cylinder diameter use diameter 100mm, in addtion to up/down movement with fast speed, and pressure is also enough for hot stamping the products in general small area.
3.Base Plate can be made a micro adjustment for forward/backward and right/left movement and hot stamping can be made a micro adjustment horizontally.
Application:
sealSpecifications:
型式 MODLE |
AT-4DN-SQ-AUTO |
熱盤面積 Size Of Plate |
140*170m/m |
電源及電熱 Power Source & Heating |
AC220,800W |
溫度調節 Regulation of Temperation |
0-400℃ |
時間控制 Time Control |
0-6s |
自動卷箔 Roller Leaf Feeding Device |
0.5-170m/m |
氣缸直徑 Cylinder Diameter |
Φ100m/m |
行程 Stroke |
100m/m |
作業臺面積 Area Of Base Plate |
340*370m/m |
最大壓力 Maximum Pressure |
400kgs |
最大開度 Maximum Gap |
200m/m |
重量 Weight |
500kgs |
機械尺寸 Dimension |
L1130*W550*H1550m/m |
