Product Name:

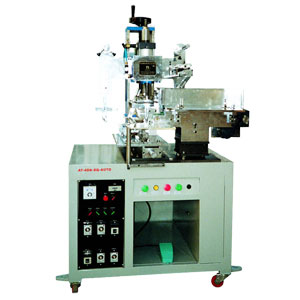

Air Pressure Up/down Type Full Automatic Hot Staming Machine
AT-6H-AUTO
Feature:
1.Air pressure type with full automatic system,suitable for hot stamping or heat transfter printing on pencil or eyebrow pencil.
2.Producing capacity about 22-25 pcs per minute.
3.The hopper can be adjusted according to the length and width of printing object.
4.Load in system adopting lining guide and fluctuat connector, so it can be accurate and stable.
Application:
Suitable for hot stamping pencil, pen, or other round articles automatically.Specifications:
|
型式 MODLE |
AT-6H-AUTO |
|
熱盤面積 Size Of Plate |
140*170m/m |
|
電源及電熱 Power Source & Heating |
AC220V,800W |
|
溫度調節 Regulation of Temperation |
0-400℃ |
|
時間控制 Time Control |
0-9.9s |
|
自動卷箔 Roller Leaf Feeding Device |
0-300m/m |
|
氣缸直徑 Cylinder Diameter |
Φ63m/m |
|
行程 Stroke |
50m/m |
|
最大壓力 Maximum Pressure |
400kgs |
|
最大開度 Maximum Gap |
200m/m |
|
重量 Weight |
500kgs |
|
機械尺寸 Dimension |
L1000*W800*H1800m/m |
